– Độ phân giải 4.0MP. H.265+/H.265/H.264+/H.264
– Siêu nhạy sáng Darkfighter, Color: 0.005 lux/F1.5, B/W:0.0005 lux/F1.5.
– Góc quay :360°; Góc quét: -20°~90°(tự động lật), tốc độ quay Pan: 0.1°~210°/s, tốc độ quét: 0.1°~150°/s,
– Zoom Quang: 36x, Focus: 5.7-205.2 mm, Hồng ngoại 200m IR
– Tính năng theo dõi thông minh, phát hiện thông minh, Chống sương mù, Lấy nét tức thì
– Tiêu chuẩn chống bụi, nước IP66, chống đập phá IK10

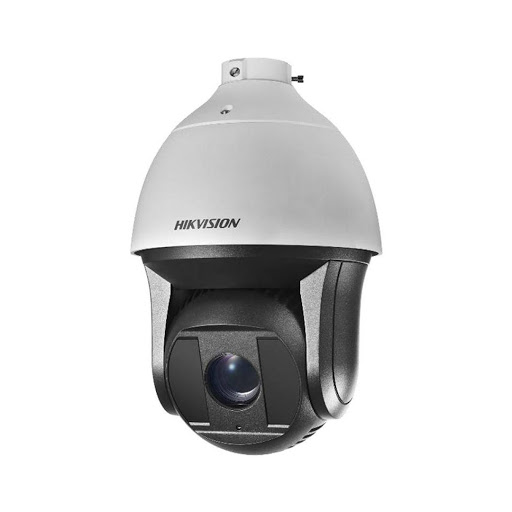

CAMERA HIKVISION IP 4MP SPEED DOME DS-2DF8436IX-AELW
Camera IP Speed Dome hồng ngoại 4 Megapixel HIKVISION DS-2DF8436IX-AELW
- Cảm biến hình ảnh: 1/1.9 inch CMOS.
- Độ phân giải Camera IP: 4.0 Megapixel (2560 x 1440).
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Zoom số: 16x.
- Zoom quang: 36x.
- Ống kính: 5.7 - 205.2 mm.
- Góc quay: 360°.
- Góc quét: -20°~90° (Auto-flip).
- Tốc độ quay: 0.1°~210°/s.
- Tốc độ quét dọc: 0.1°~150°/s.
- Tầm quan sát hồng ngoại: 200 mét.
- Độ nhạy sáng (Darkfighter): Color 0.005 lux/F1.5, B/W 0.0005 lux/F1.5, 0 lux với IR.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lên đến 256GB.
- Chức năng giảm nhiễu kỹ thuật số 3D DNR.
- Chức năng chống ngược sáng thực WDR.
- Chức năng chống rung kỹ thuật số EIS.
- Chức năng chống sương mù, lấy nét tức thì.
- Các tính năng thông minh: Smart Tracking và Smart Detection.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 24VAC và Hi-PoE.
- Chức năng cấp nguồn qua mạng PoE.
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
Đặc tính kỹ thuật
| Model | DS-2DF8436IX-AELW |
| Image Sensor | 1/1.9 inch progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| Day & Night | IR cut filter |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| Support | 3D DNR, BLC, HLC, Digital WDR, Option Defog, EIS, Regional Exposure, Regional Focus, Rapid Focus. |
| Lens | |
| Focal Length | 5.7 mm to 205.2 mm, 36× Optical |
| Zoom Speed | Approx. 4.4 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view: 51.1° to 1.7° (wide-tele) Vertical field of view: 31.3° to 1.0° (wide-tele) Diagonal field of view: 58.0° to 2.0° (wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F4.5 |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Pan Speed | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s |
| Movement Range (Tilt) | From -20° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Support |
| Preset Freezing | Support |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Smart Features | |
| Smart Detection | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Face Detection, Audio Exception Detection |
| Smart Tracking | Manual Tracking, Auto Tracking, Event Tracking |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| IR | |
| IR Distance | 200 m |
| Smart IR | Support |
| Network | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| ROI | Support |
| SVC | Support |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPE H.264 with Baseline/Main/High Profile |
| Audio compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| System Integration | |
| Alarm Input/Output | 7-ch alarm input and 2-ch alarm output |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Audio Input/Output | 1-ch audio input and 1-ch audio output |
| Network Interface | 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE |
| CVBS | Support |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| API | Open-ended, support ONVIF, and CGI, support HIKVISION SDK and Third-Party Management Platform |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE7+, Chrome18-42, Firefox5.0+, Safari5.02+ |
| General | |
| Power | 24 VAC (Max. 60 W) Hi-PoE (Max. 50 W) |
| Working Temperature | Outdoor: -40°C to 65°C (-40°F to 149°F) |
| Working Humidity | ≤ 90% |
| Protection Level | IP66 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | Φ 266.6 × 410 mm |
| Weight | Approx. 8 kg |
